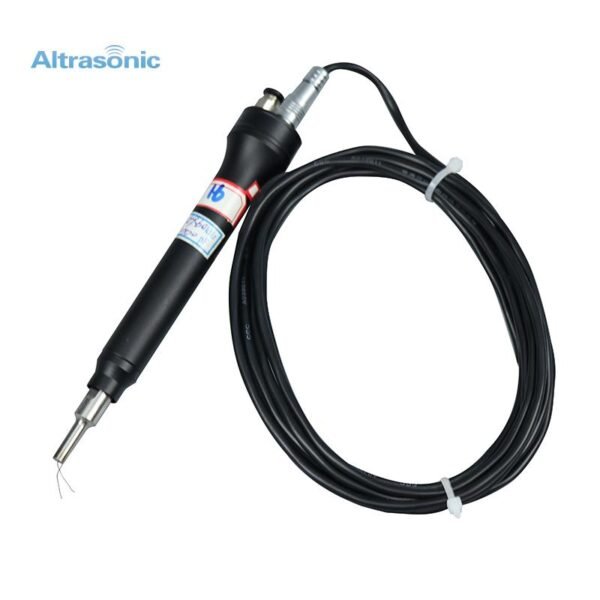

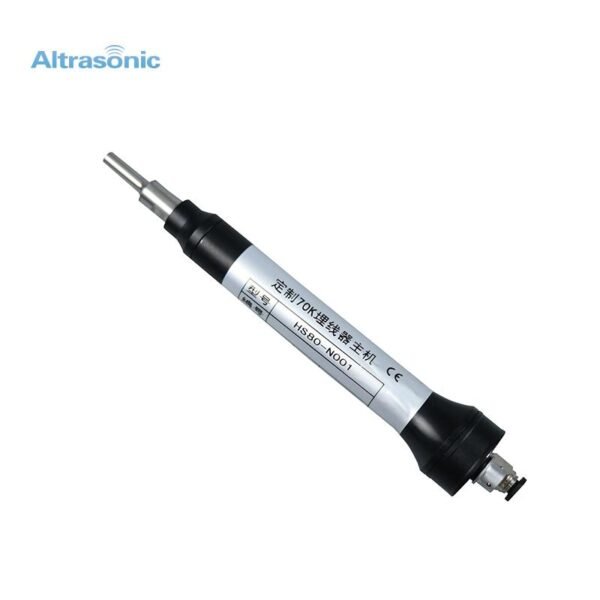

Titanium Ultrasonic Transducer 70 kHz For Smart Card Embedding Machine

The 70 kHz ultrasonic transducer is applied to embedding the coil wires to the smart card, or RFID card, and other small samples welding applications. Altrasonic R&D department design the small welding horn to weld, embed, or inlay, many kinds of small parts with different type shapes.

ltem No.:HS-1070-2Z
Payment:T/T, PayPal, Western Union
Product Origin:China
Color:Silver And Black
Shipping Port:Shanghai Or Ningbo
Lead Time:7



分类：

Titanium Ultrasonic Transducer 70 kHz For Smart Card Embedding Machine

Specification:

ltem NoHS-1070-2Z
Frequency70 kHz
Power100 W
Joint boltM4
Diameter of ceramic10 mm
Quantity of ceramic2 pcs
Resistance200 Q
Amplitude1 um
ApplicationWelding

Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations. It can be used in various industries.

Advantages:



1. Titanium materials and Aluminum materials optional.
2. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
3. Supply OEM service
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
