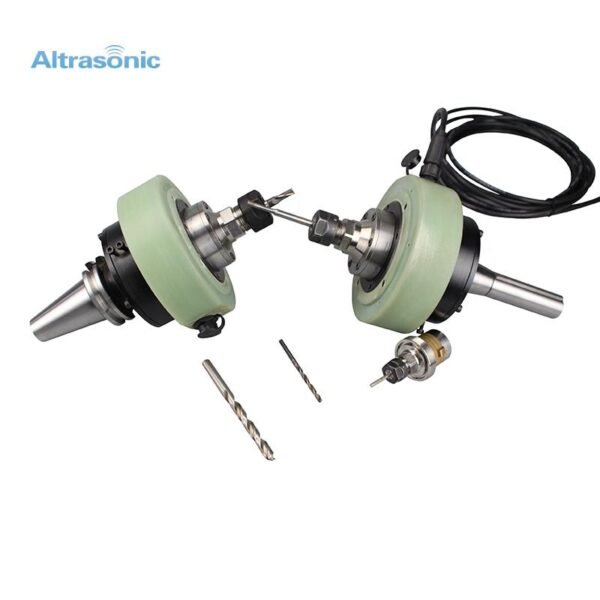

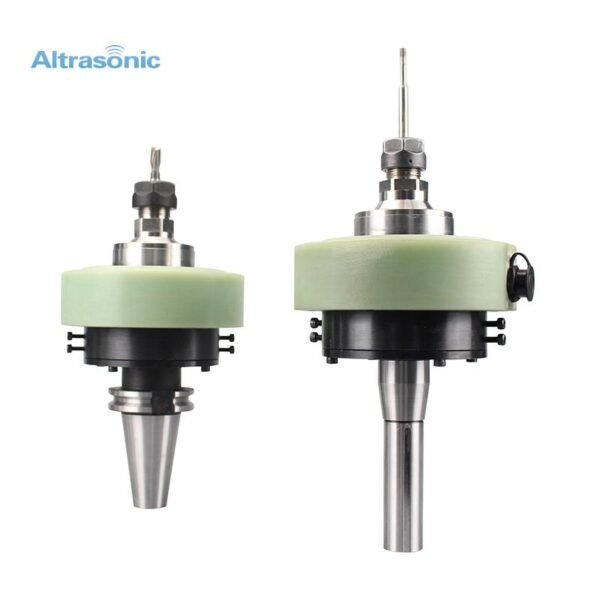

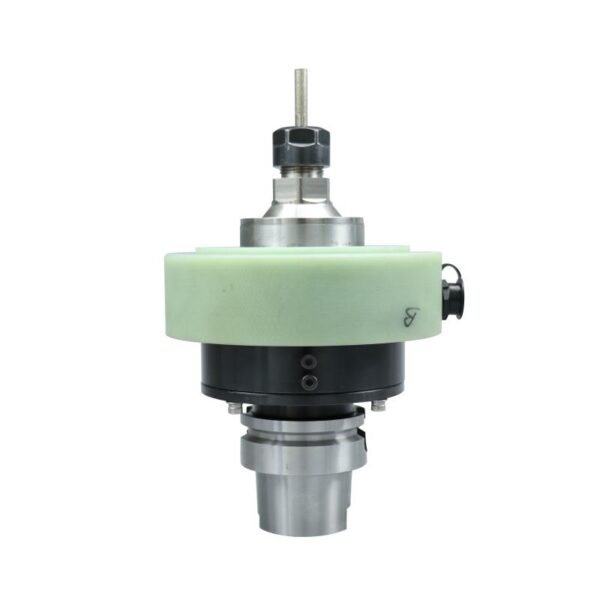

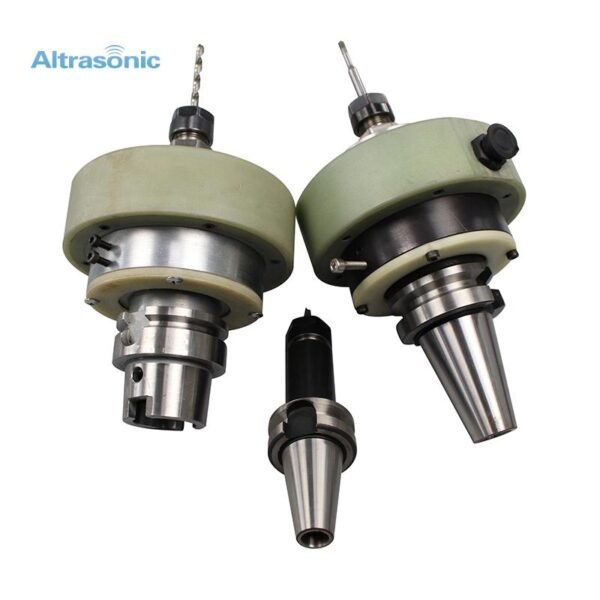

HS-M20 Ultrasonic Milling and Drilling BT40 HSK63 Rotary Ultrasonic Spindle

Specification:

Description:

Ultrasonic grinding processing technology: Ultrasonic grinding is a process method that uses the forced vibration of the grinding wheel (or workpiece) to perform grinding during the grinding process. When the magnetization power supply of the ultrasonic generator is started, a certain ultrasonic frequency current and a DC current for magnetization are supplied to the nickel magnetostrictive transducer, and an alternating ultrasonic frequency magnetic field and a constant polarizing magnetic field are generated in the transducer coil. The transducer generates longitudinal mechanical vibration energy of the same frequency, which is transmitted to the horn at the same time, and the amplitude is amplified to a predetermined value, and the resonant cutter bar is driven to perform vibration cutting. The transducer, horn, and cutter rod are in resonance with the ultrasonic frequency output by the generator, forming a resonant system, and their solids should be at the displacement node. At the same time, the cutting length of each abrasive particle is shortened, and the abrasive dust becomes finer and shorter. In addition, the abrasive dust is not easy to block the grinding wheel. The abrasive particle can maintain a sharp state. Generally, it can reduce the grinding force by 30% to 60% compared with ordinary grinding. Cutting temperature increases the processing efficiency by 1~4 times. In addition, ultrasonic vibration grinding also has the advantages of compact structure, low cost, and easy promotion and application. Ultrasonic grinding equipment cleaning equipment with heating system is strictly prohibited to turn on the heating switch when there is no liquid.

Advantages:

1. Suitable for processing hard metals, stones, diamonds, with high precision

2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders

3. Diversified tool sizes, the tool head can also be customized according to actual needs
